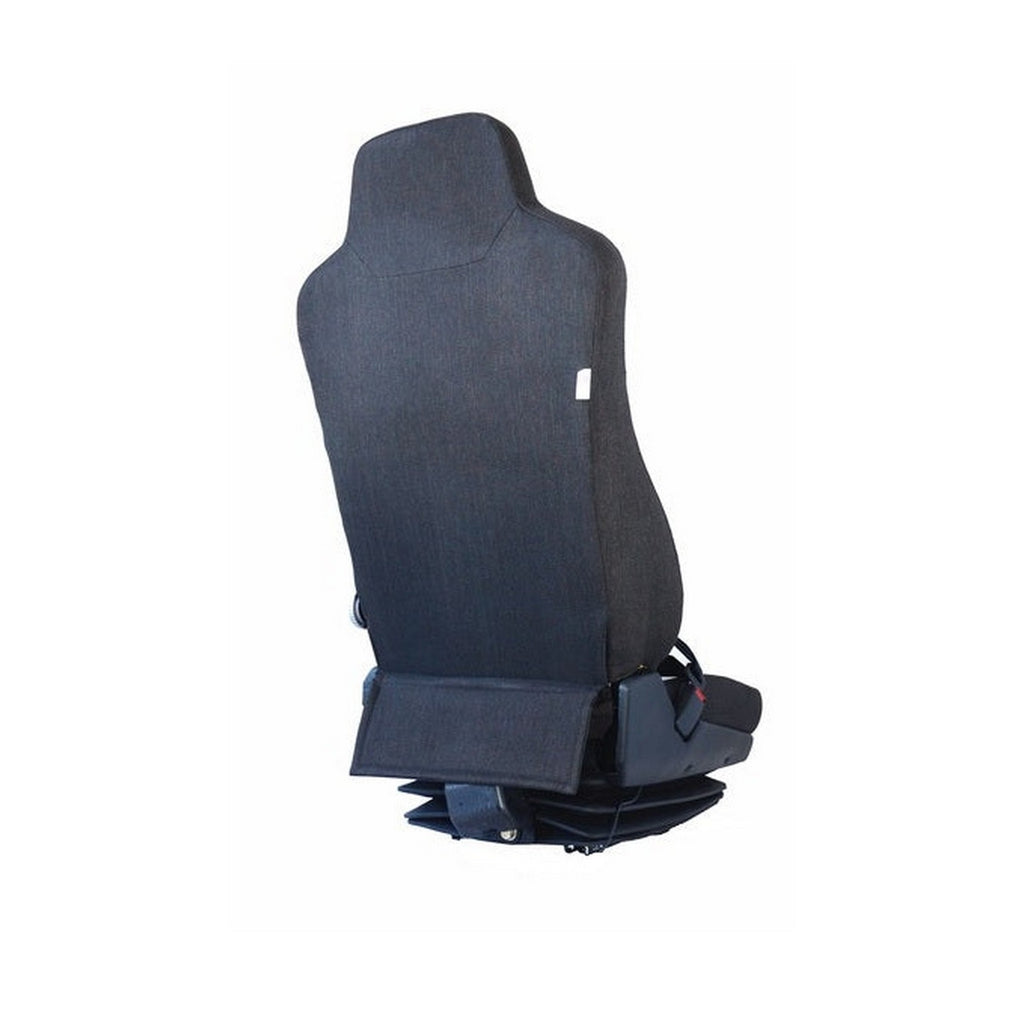

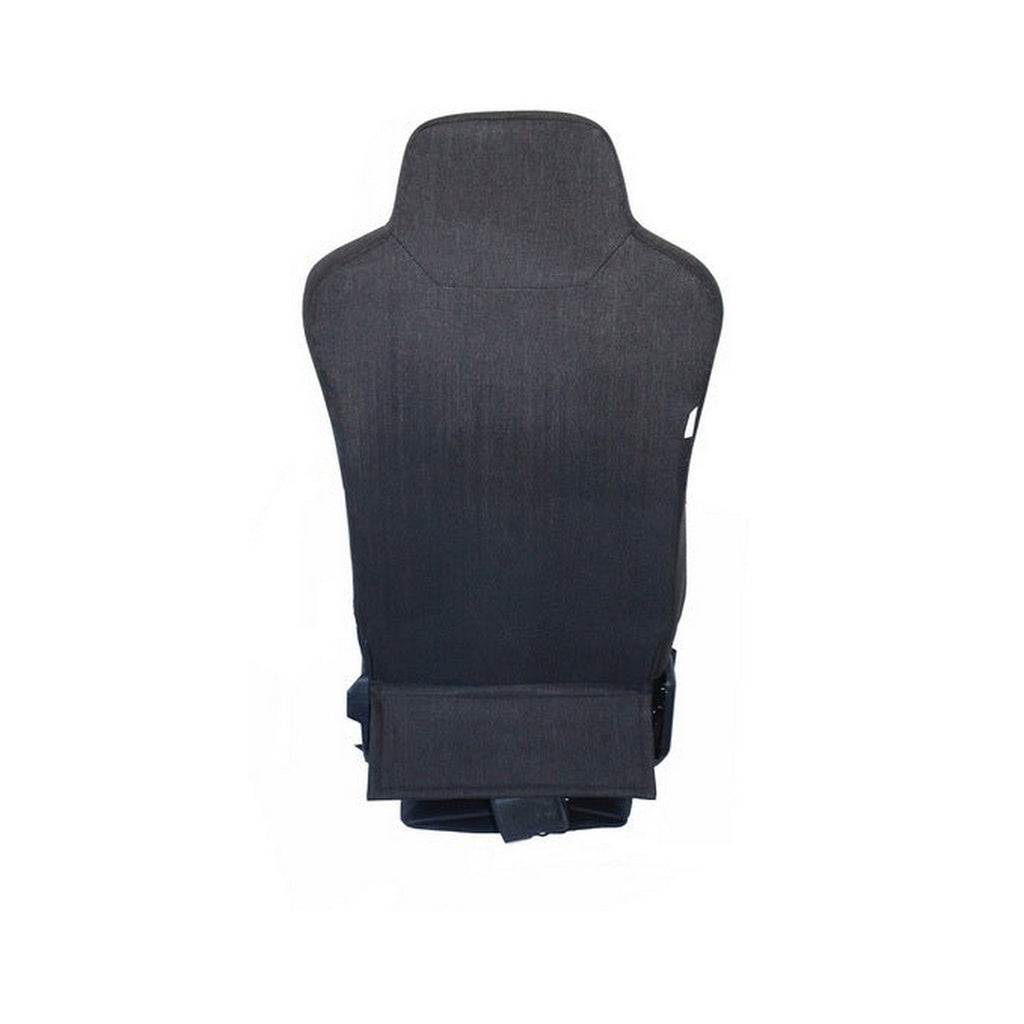

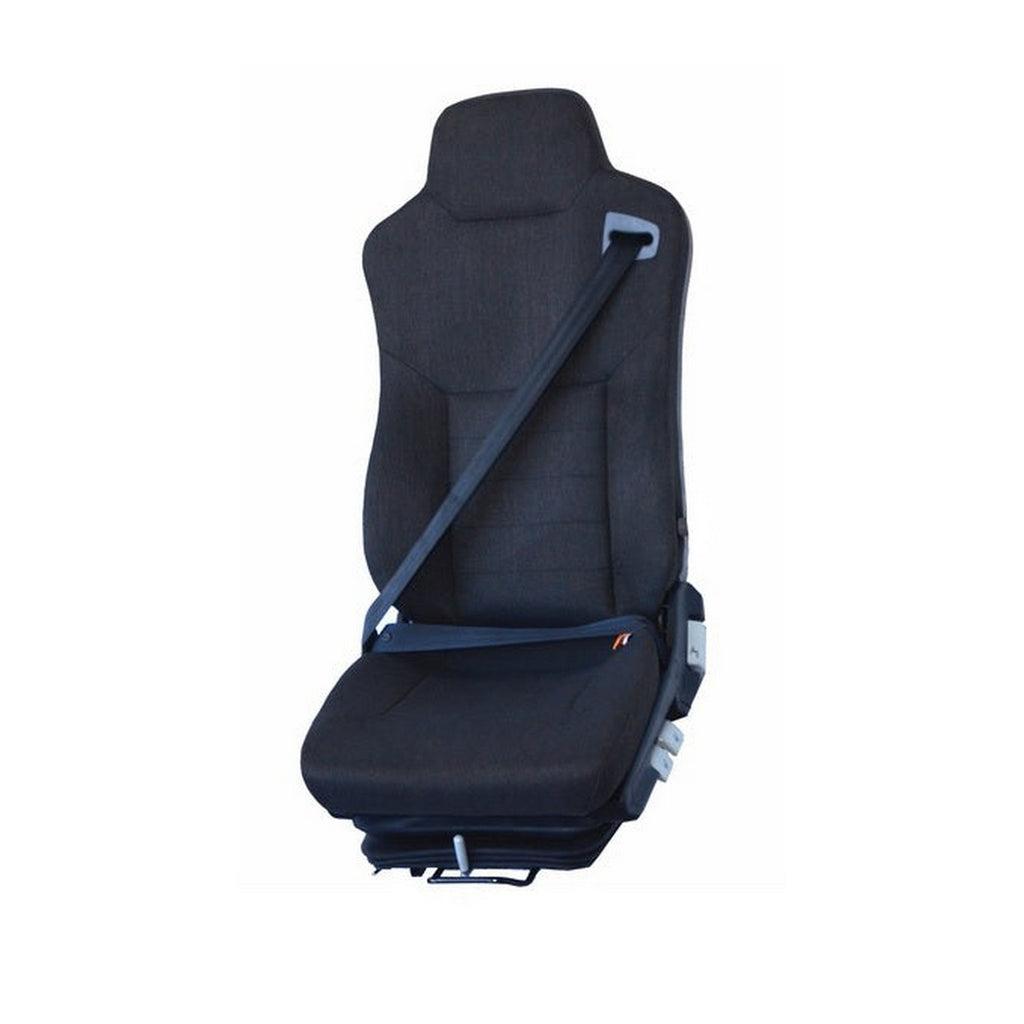

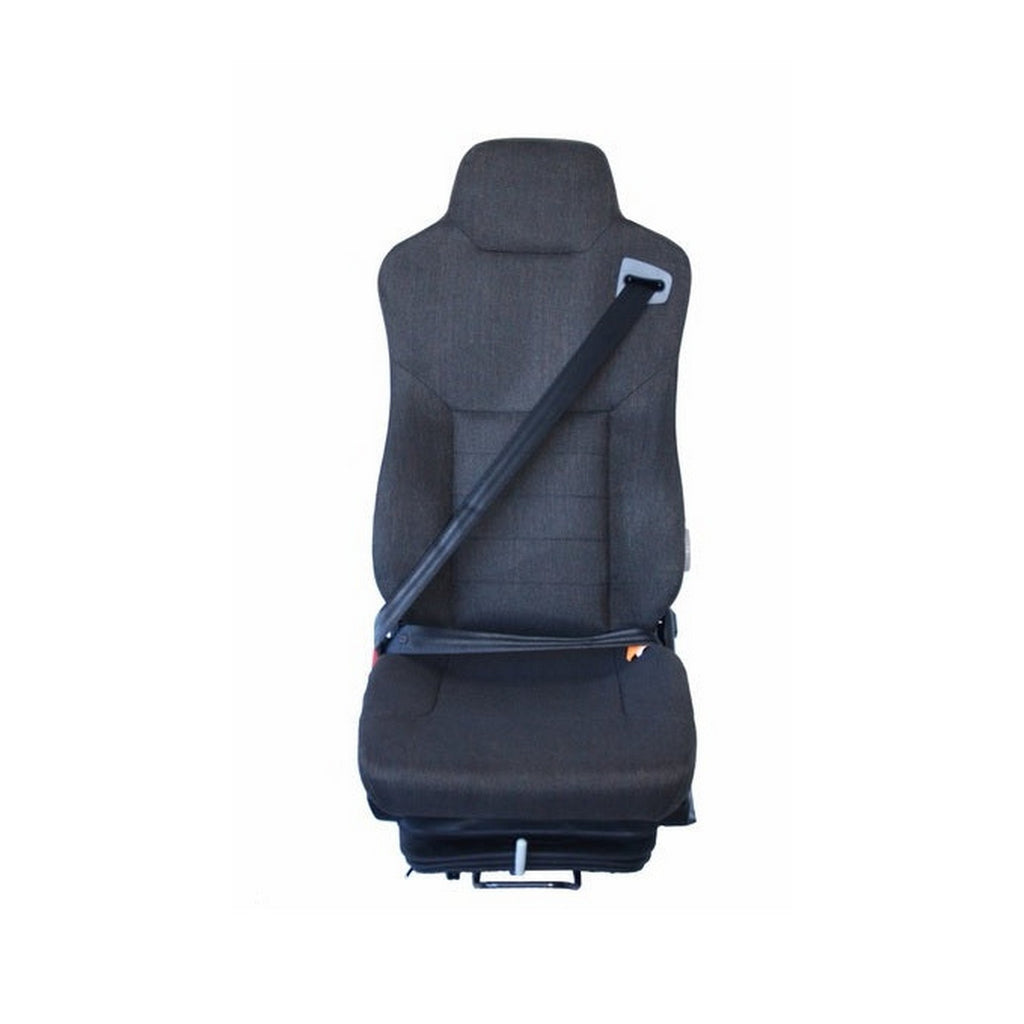

Model: ETS023 Left
This seat will exceed your comfort expectations

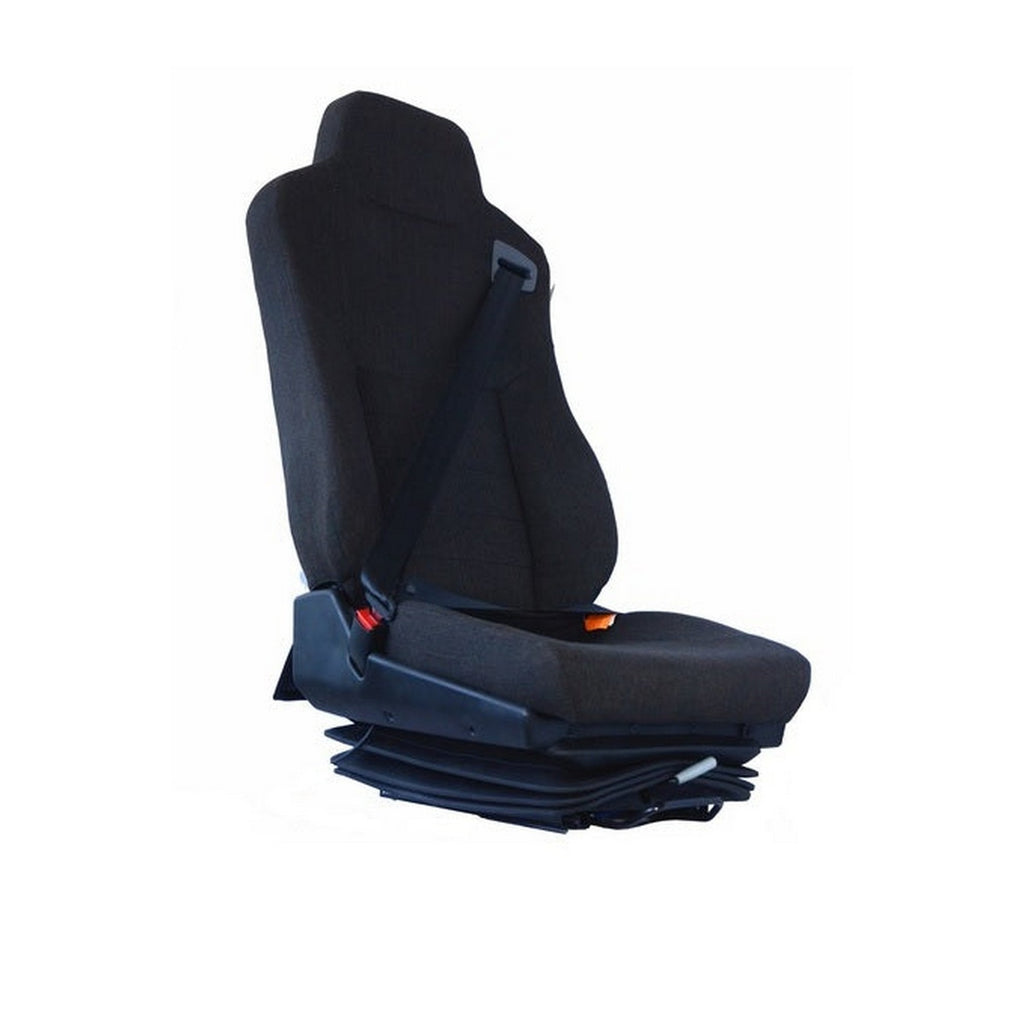

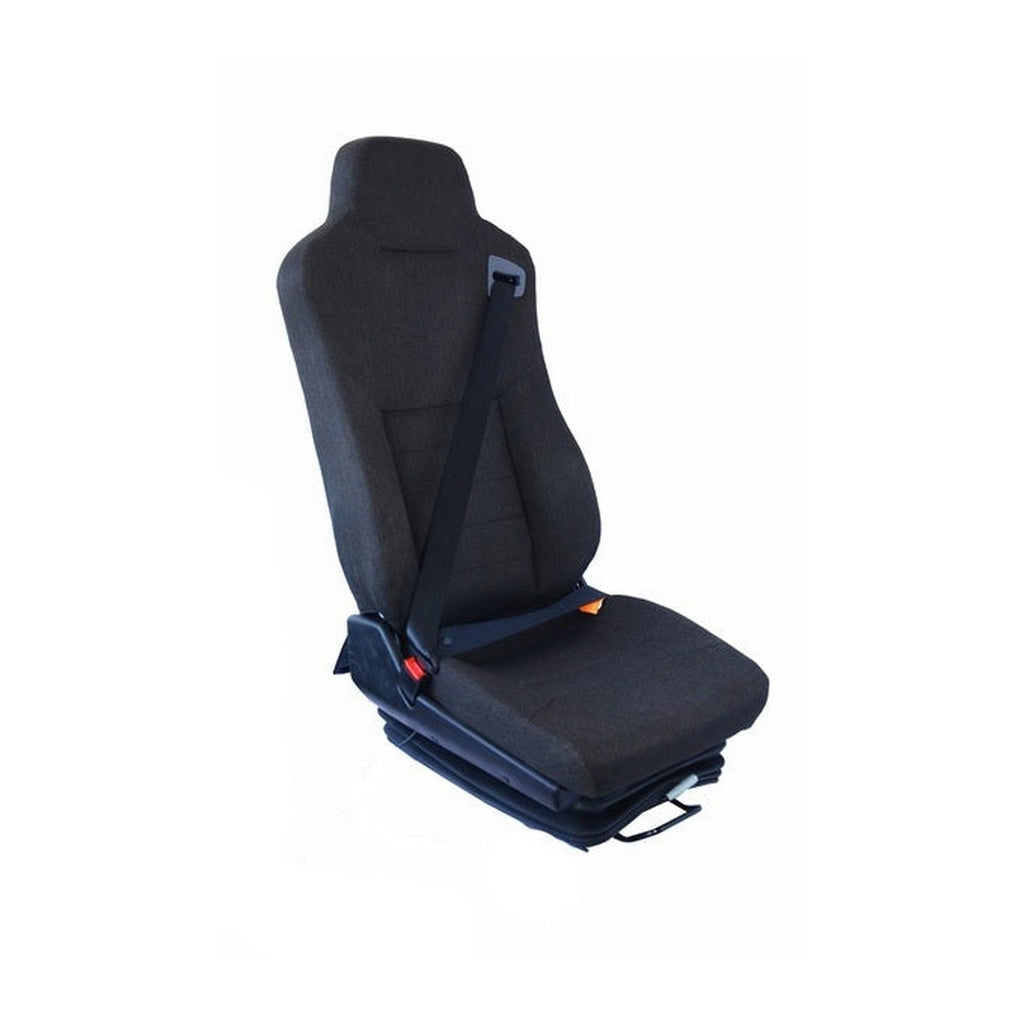

Comes with seatbelt & Seat Belt Sensor
Comes with adjustable lumber support
Armrests Optional (ETSAR01 Set L & R)
Specifications
▪Horizontal adjustment: stroke 200mm (10mm×20)
▪Weight adjustment: Automated up to 130kg (40~130kg), air pressure 0.3~0.7Mpa (air pressure of supply 0.7~0.9Mpa)
▪Pneumatic suspension function: stroke ±40mm

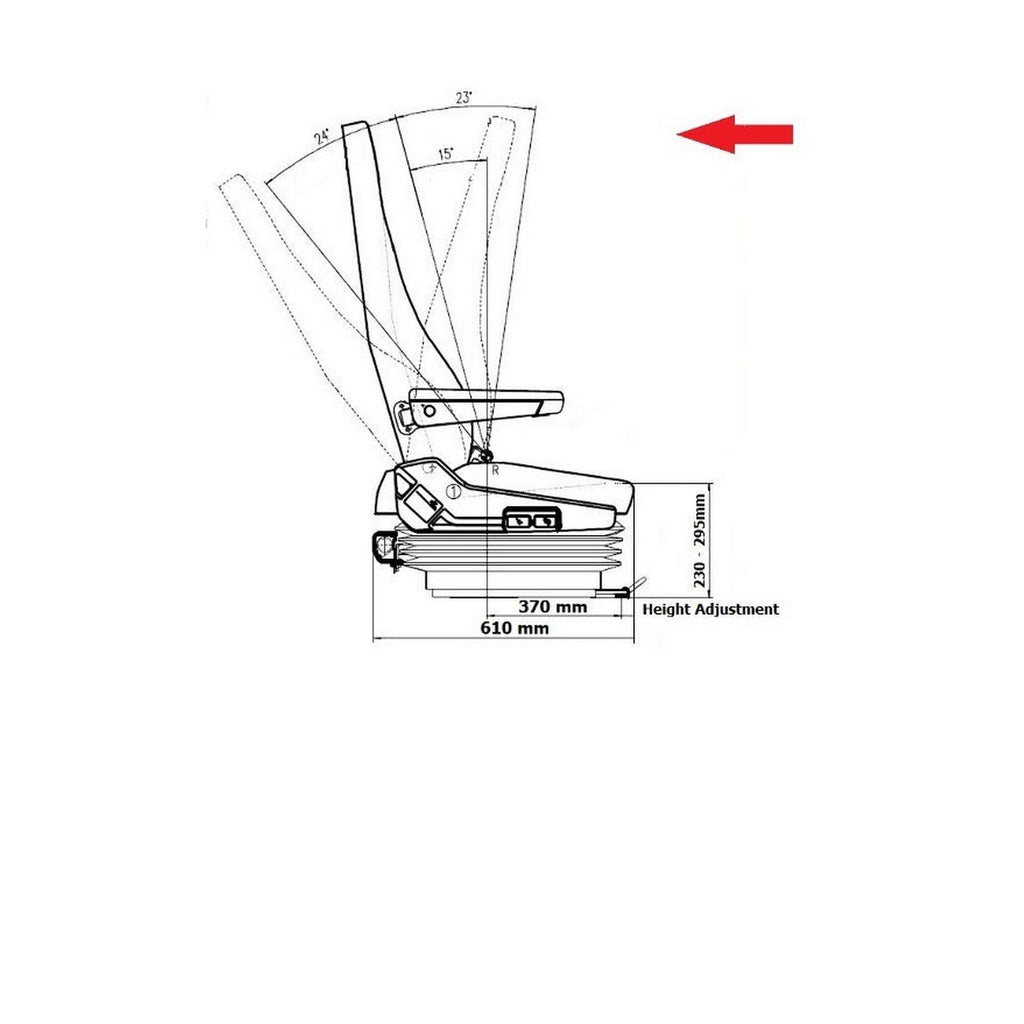

▪Height / rake adjustment: adjust range ±65mm, rake adjustable ±14°
▪Backrest adjustment: adjust range 80°+41°
▪Three-point-belt

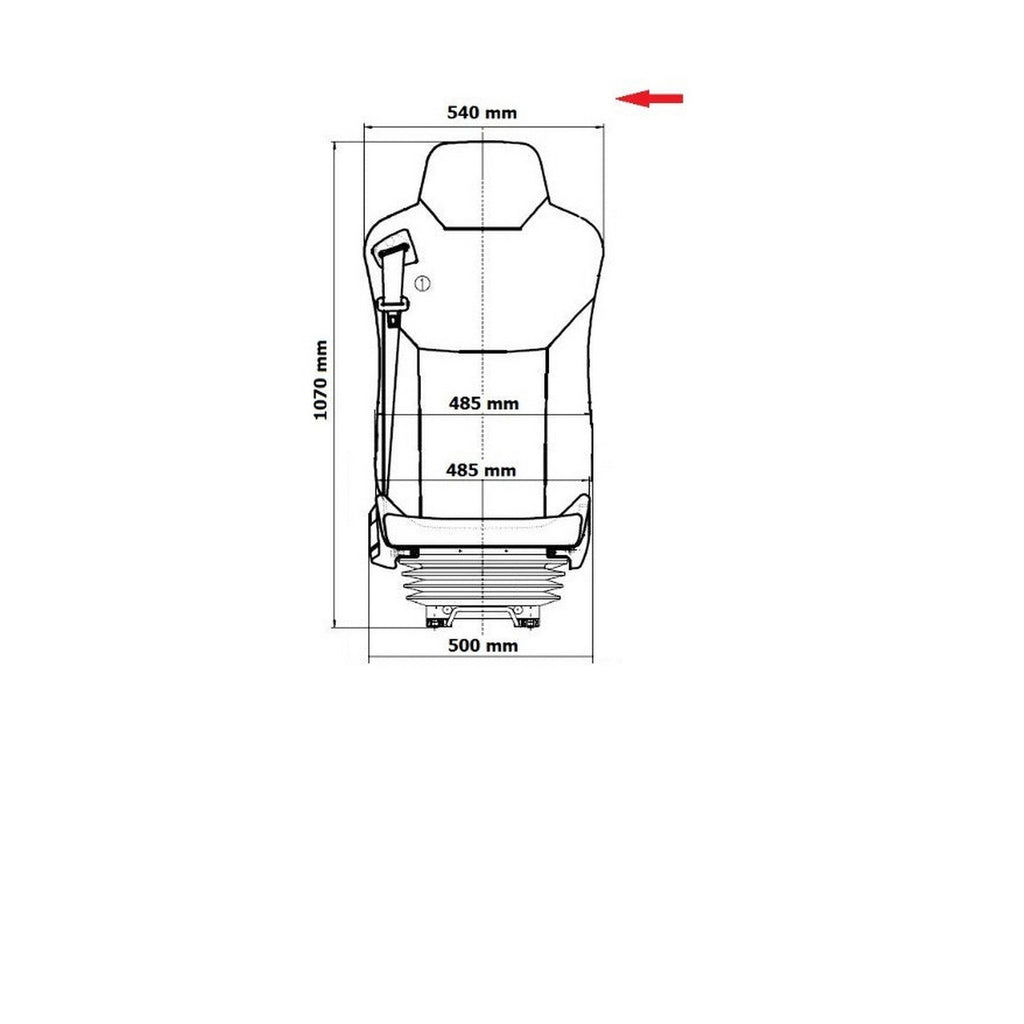

Seat size: 610*540*1075mm(Length*width*height)
▪Seat cushion height(work state)230mm - 280 mm
.seat cushion width 485mm, seat cushion depth 480mm
▪Backrest height 630mm, backrest width 485mm

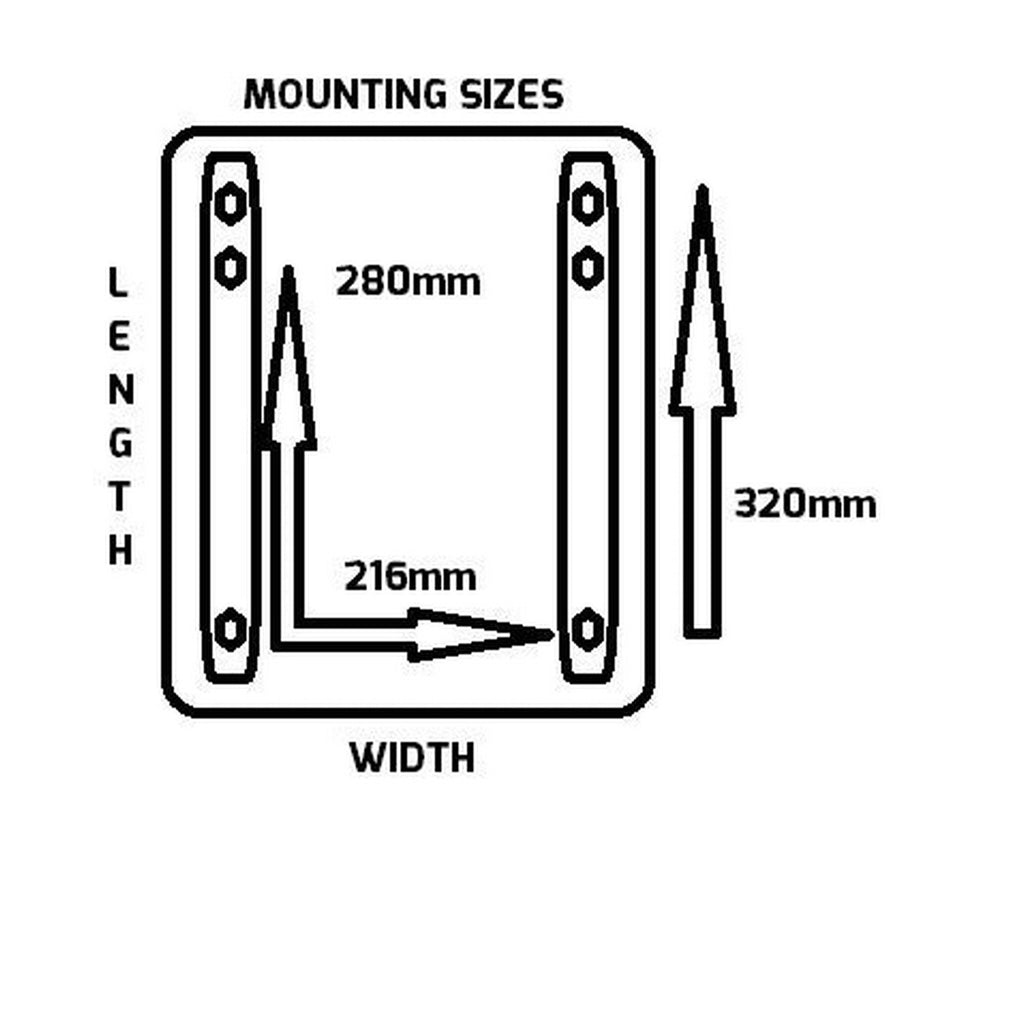

▪Connect size(L/R×F/B)216mm×280mm or 320mm

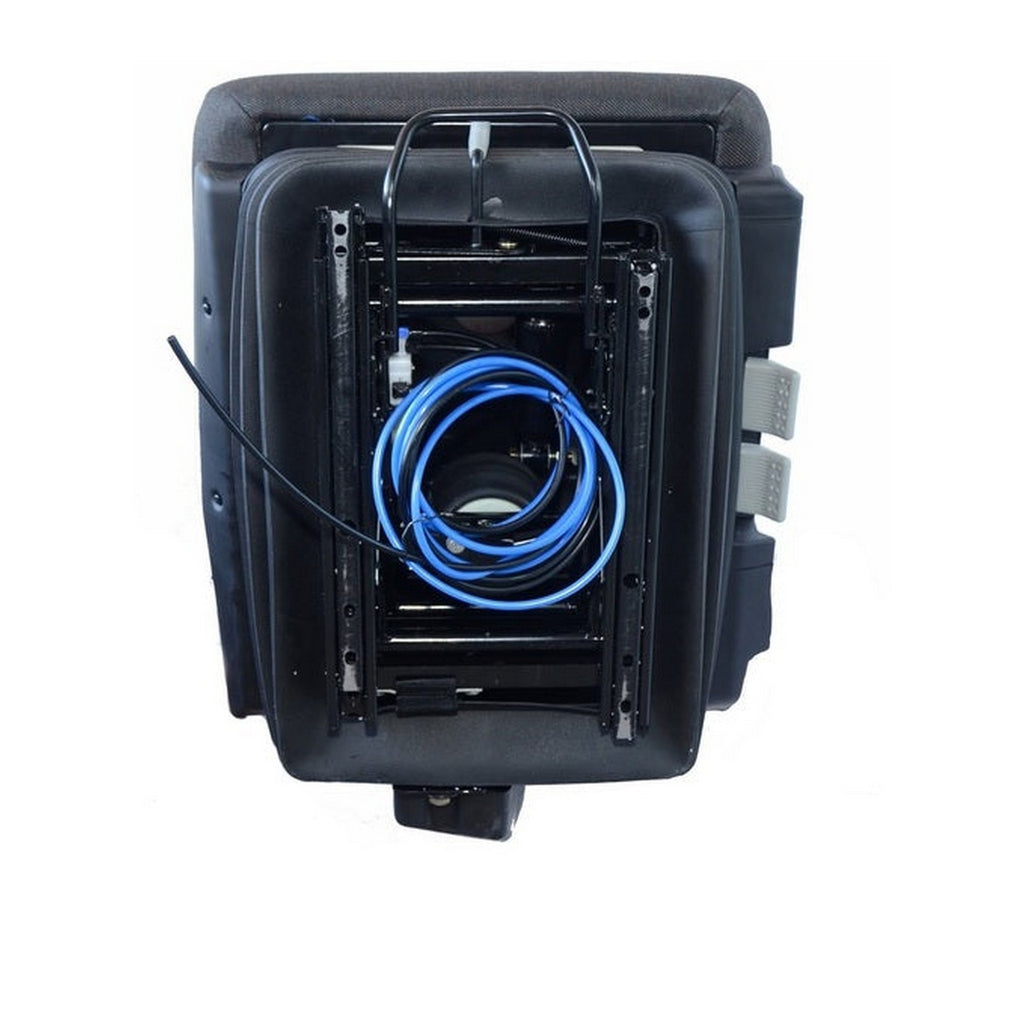

All Seats come with Sliding Rails Attached
Can use ETSRB01 Seat Riser Box
Payment: Pay Pal on check-out or c/card over the phone or request invoice for EFT.
1 Year Warranty
Adapter Plates Available
Ph. 07 3161 3327
